| Equipment Specifications |
 |
|
| Year |
2006 |
| Manufacturer |
PIPER |
| Model |
PA-32R-301T |
| Price |
$485,000.00 |
| Location |
KJVW RAYMOND, MS |
| Condition |
USED |
| Serial Number |
3257427 |
| Registration Number |
N3143J |

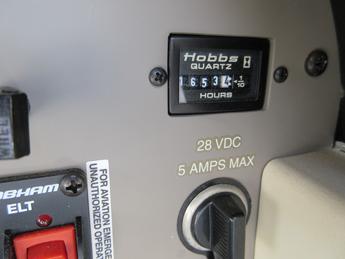

| Total Time |
1652.5 HOURS |
| Overhaul |
1652.5 SINCE NEW 82.2 SMOH BY AMERICA'S AIRCRAFT
ENGINES (5/2021) |
| Flight Rules |
IFR |
| Number Of Seats |
6 |
|
| Detailed Description |

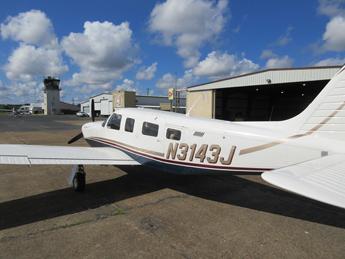

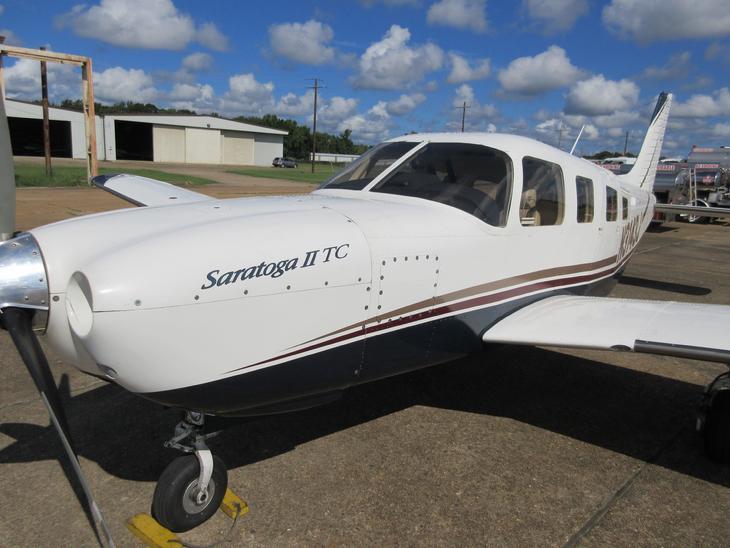

THIS WELL EQUIPPED HANGARED PIPER TURBO SARATOGA HAD A RECENT ENGINE OVERHAUL DUE TO EXHAUST VALVE METAL CONTAMINATION. PERFORMED BY AMERICA'S AIRCRAFT ENGINES IN TULSA OKLAHOMA WITH A WARRANTY. BUILT IN 2006, THIS AVIDYNE EQUIPPED SARATOGA IS FITTED WITH THE FACTORY TKS DE-ICE PROTECTION INCLUDING THE PROP (INADVERTENT ICING OPTION). EQUIPPED WITH DUAL GARMIN GNS430s (NUMBER 1 IS WAAS EQUIPPED FOR LOWER APPROACH MINIMUMS), PMA 8000 AUDIO PANEL, S-TEC 55X AUTOPILOT, GARMIN 330ES ADS-B COMPATABLE TRANSPONDER, FACTORY AIR CONDITIONING, LEATHER INTERIOR, BOSE LEMO HEADSET JACKS, AND THE LIST GOES ON. ALWAYS HANGARED IT HAS JUST HAD A THOROUGH ANNUAL AT A LEADING SARATOGA SPECIALIST, HAWKINS JET CENTER, LOCATED IN JACKSON, MISS.
Airframe:
1652.5 HOURS SINCE NEW. ALL LOGS IN ENGLISH AND CONTINUOUS
SINCE NEW. ALWAYS US BASED. ORIGINAL 'N' NUMBER FROM NEW
Engine Specs:
LYCOMING TIO-540-AH1A, S/N L-12381-61A
1652.5 HOURS SINCE NEW, 82.2 HOURS SINCE MAJOR OVERHAUL IN MAY OF 2021.
Prop(s):
HARTZELL 3 BLADE METAL CONSTANT SPEED; HC-13YR-1RF/F7663DR
INSTALLED 1/2014; 1055.8 SNEW
PROP IS EQUIPPED WITH DE-ICE PROTECTION THROUGH THE FACTORY TKS INADVERTENT ICE SYSTEM
Modifications/Conversions:
FACTORY TKS DE-ICE WEEPING WING/PROP SYSTEM (NOT FIKI APPROVED)

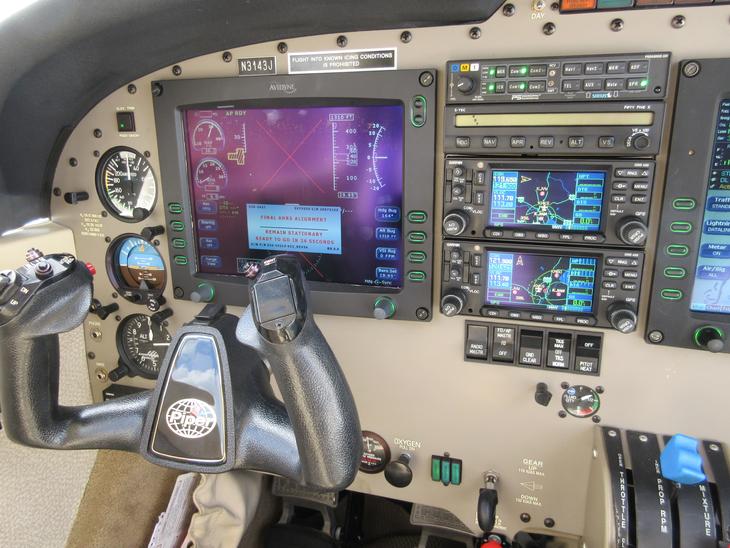

Avionics/Radios:
PS ENGINEERING PMA8000 AUDIO PANEL
GARMIN GNS430W GPS/COM/NAV
GARMIN GNS430 GPS/COM/NAV
GARMIN GTX330ES TRANSPONDER WITH ADS-B OUT
S-TEC 55X 2 AXIS AUTOPILOT WITH
VERTICAL SPEED/AUTO TRIM/ALTITUDE HOLD/GPSS
AVIDYNE 2 TUBE ELECTRONIC PFD/MFD ENTEGRA EX5000 R.8.1
FACTORY BACK-UP 3 PACK STAND-BY INSTRUMENTS
ELECTRIC TRIM
BOSE LEMO PLUGS PILOT AND CO-PILOT POSITIONS (SINGLE PLUG POWERED FOR ANR HEADSETS)
6 PLACE GA 2 PLUG HEADSET JACKS
Additional Equipment/Weight And Balance Information:
WING STROBES
AVIONICS MASTER
102 GALLON 2 WING TANK FUEL SYSTEM
EXTERNAL POWER RECEPTACLE
EMPTY WEIGHT: 2611.44 LBS.
GROSS WEIGHT: 3400 LBS.
USEFUL LOAD: 1003.57 LBS.
EMPTY CG: 86.37
MOMENT: 225,558.54
_________________________________________________________________________________
Exterior:
ORIGINAL FACTORY PAINT IN THE FOLLOWING COLORS:
OVERALL WHITE WITH ARCTIC BLUE METALLIC P1287HD,
LIGHT BURGUNDY METALLIC P1227HD, SILVER PLATINUM
METALLIC P1253HD
ALWAYS HANGARED
RATED 6/10
Interior:
FACTORY ORIGINAL LIGHT TAN LEATHER SEATS
TAN WITH MATCHING SIDE PANELS AND CARPETS
VERY CLEAN CONDITION. RATED 6/10
INSPECTION STATUS:
ANNUAL INSPECTION PERFORMED 8/16/2022;
COMPRESSIONS AT THE CURRENT INSPECTION
WERE 78,78,76,77,78,77.
PITOT/STATIC/ALTIMETER CERTIFICATION
PERFORMED 8/2022;
NEXT DUE: 8/2024
OXYGEN BOTTLE LAST HYDRO TESTED 8/2020. |
|
|
