| Equipment Specifications |
 |
|
| Year |
2022 |
| Manufacturer |
Van's RV-14 Mark A. Turner |
| Model |
RV-14 |
| Price |
US $298,000.00 |
| Location |
Raymond, Mississippi |
| Condition |
USED |

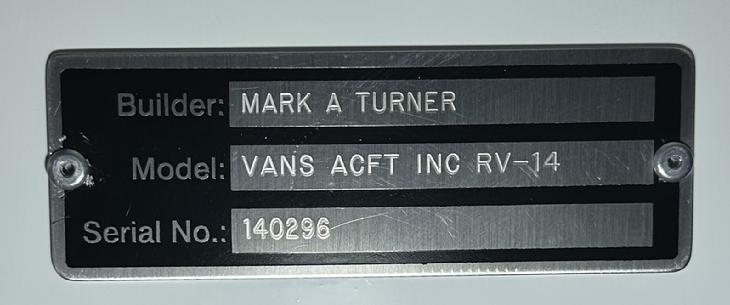

| Serial Number |
140296 |
| Registration Number |
N714MT |
| Total Time |
65 Hours |
| Overhaul |
65 Since New |
| Flight Rules |
IFR |
| Number Of Seats |
2 |
| General Information |

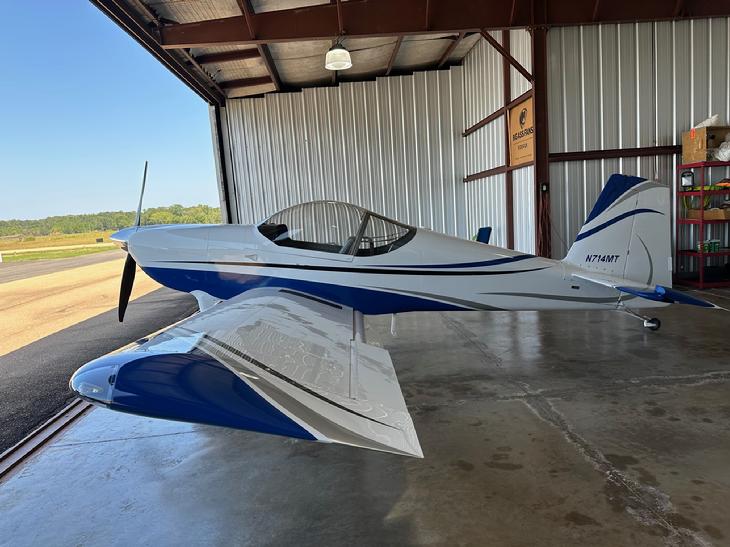

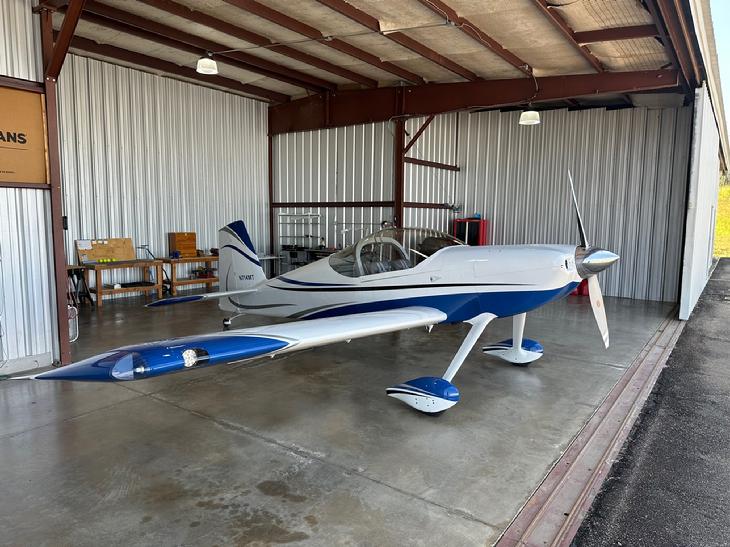

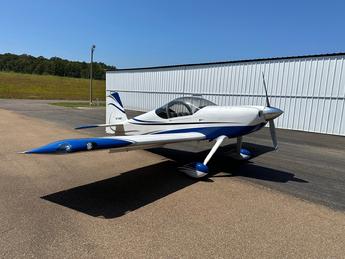

Here is a very nice recently completed Van's RV-14 with incredible build quality equipped with the latest Garmin avionics. This conforming design RV-14 has completed its 40 hour flight test and is ready for it's next owner. Hangared in Raymond, MS at KJVW, this one is sure to please, This was a 4 year build that is one of the best RV-14s out there.
Airworthiness Date: 3/22/2022 |
| Detailed Description |

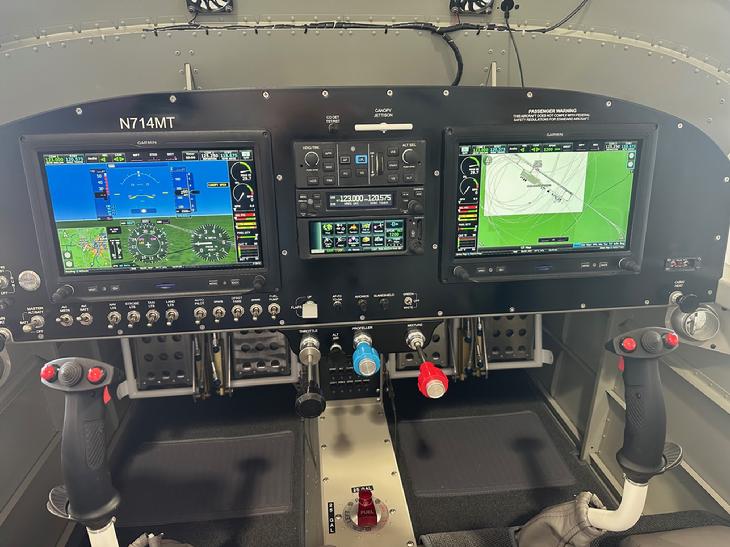

Check out the specs, pictures, and logs on this high quality recently completed Van's RV-14. The builder Mark A. Turner used a Quick Build kit which was fabricated in the Phillipines by craftsmen that build the best Quick Build kits. Stein Air built the instrument panel so everything is installed just like a factory airplane.
Airframe:
65 Hours Total Time.
All build records and drawings included with the plane.
You have to see this airplane to appreciate the exacting fit and finish.
_________________________________________________________________________________

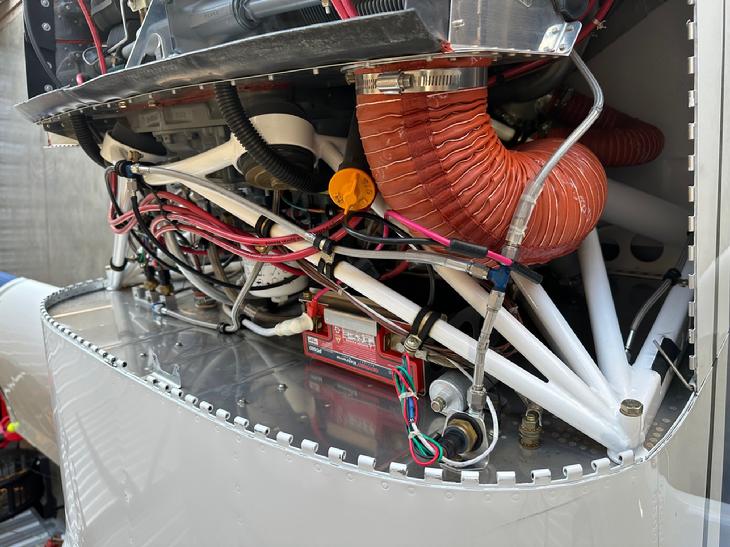

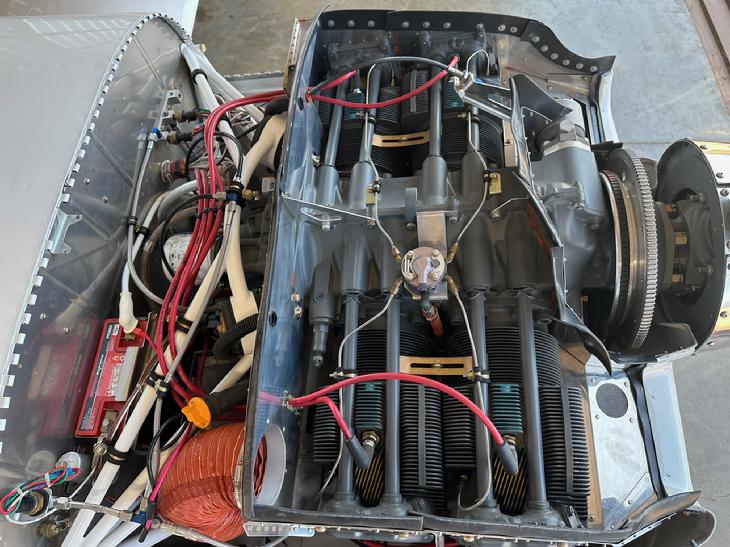

Engine Specs:
Lycoming YIO-390-EXP76 4 cylinder
Serial Number: EL-830-80E
65 hours since new.
All Factory Documentation Included.
Prop(s):
Hartzell 2 Blade Constant Speed Metal Model HC-C2YR-1BFP/F7497-2
Hub Series # NS4172B
Blade Serial Numbers: L93352, L93348
Avionics/Radios:

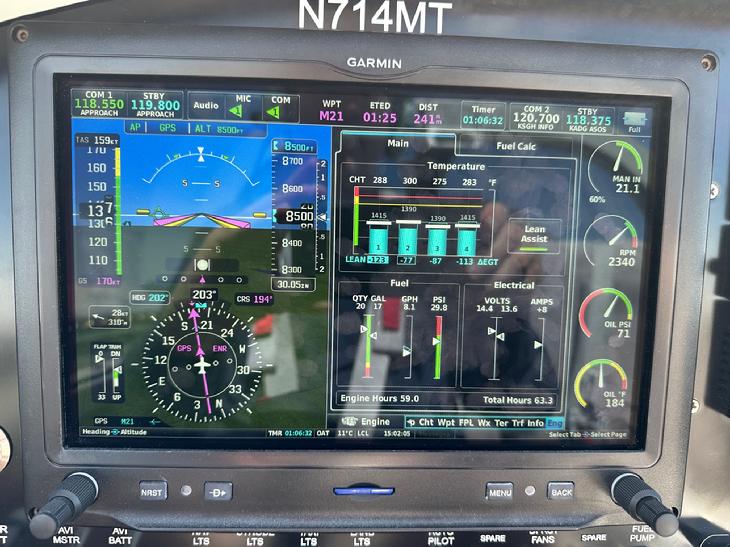

Garmin G3X IFR Avionics Suite Featuring Twin 10" Screens
Garmin GMC507 2 Axis Autopilot With Altitude Pre-Select and GPSS
Garmin GMA-245R Remote Audio Panel
Garmin GNX-375 IFR Certified Navigator With ADS-B In/Out Transponder
ACK-406MHz ELT With GPS Input
Garmin GTR-200 Remote Comm Radio For G3X Suite
Garmin GTR-200 Second Panel Mount

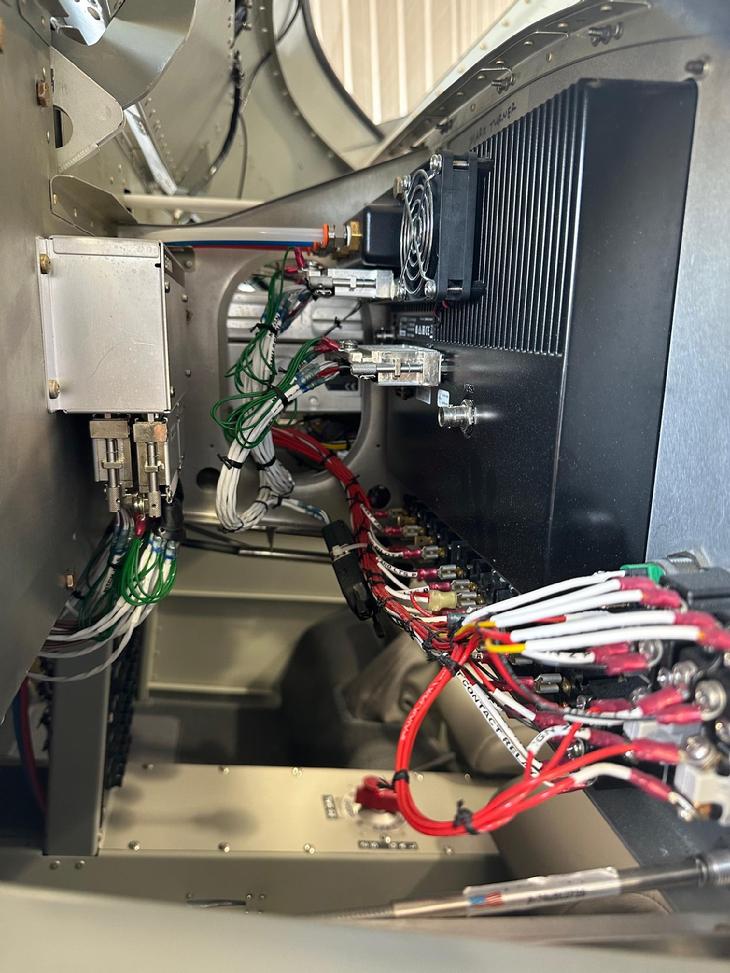

Stein Air Factory Built Wiring Harness
__________________________________________________________________________________
Additional Equipment/Information:

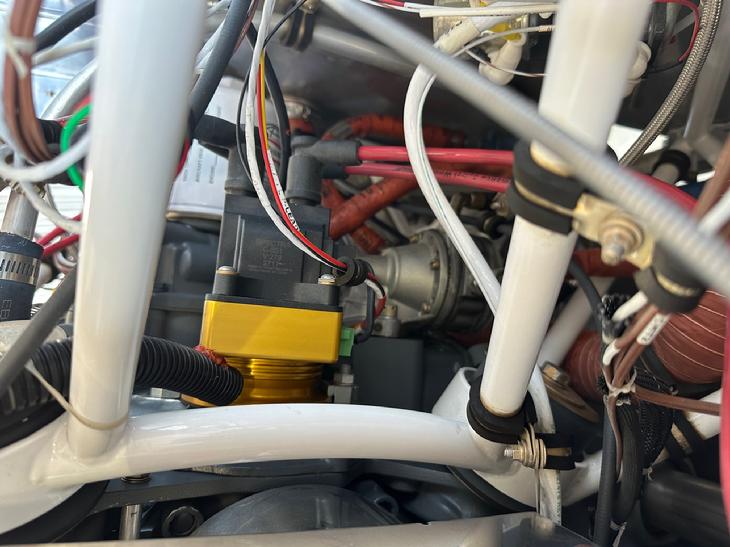

Dual P-Mag Ignition System
All LED Exterior Lighting
50 Gallon Usable Fuel System
Year Painted:
2023

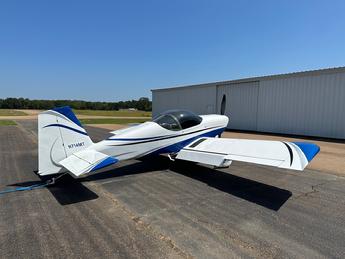

Exterior:
Paint Scheme by SCHEME DESIGNERS
Overall Matterhorn White AF404 with Mercedes Brilliant Silver CroMax 744, Axis Blue Imron AF400 Accents
Painted by John's 360 Aircraft Services, Raymond, MS
Rated New Condition
Year Interior:
2023
Interior:

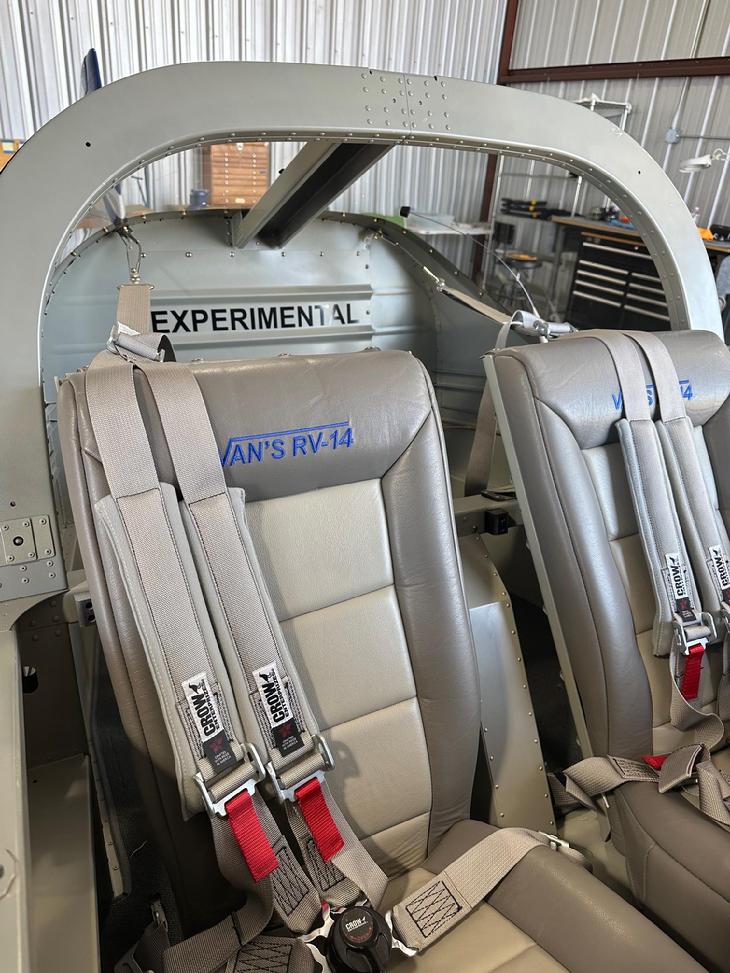

2 Tone Gray Leather With 4 point Aerobatic Style Safety Harnesses
Rated New Condition
Inspection Status:
Condition Inspection Performed 4/1/2023
Pitot/Static/Altimeter Cert. Performed 10/10/2022
Weight/Balance Information
Empty Weight 1208.5 lbs.
Empty CG 80.08 "
Useful Load 841.5 lbs.
Gross Weight 2050 lbs.
|
|
|
